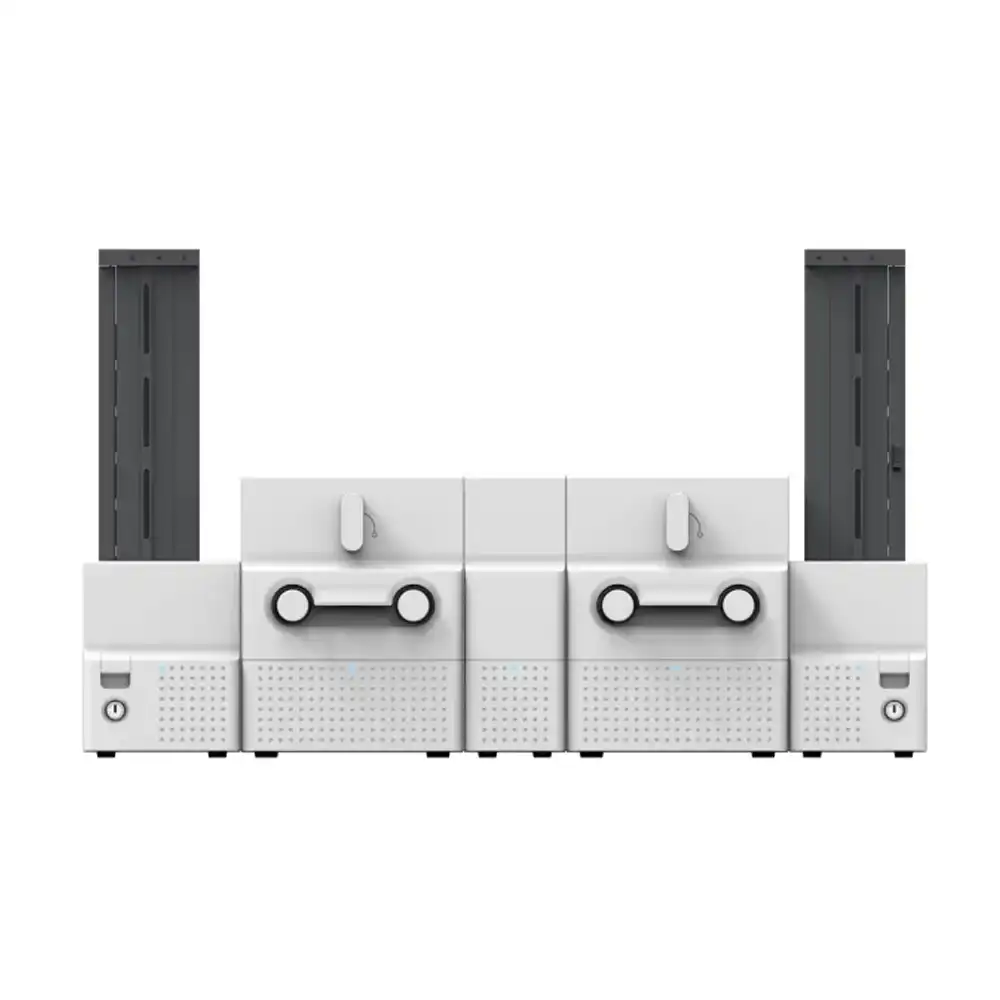

IDP SMART-70 ID Card Printer
The IDP SMART‑70 ID Card Printer is a high-capacity modular system built for large-scale badge production.
- Automatic card feeding with large 500‑card input hopper
- 300 dpi dye‑sublimation printing
- Super-fast monochrome: up to 1,000 cards/hour
- Full-color prints at up to 225 cards/hour (YMCKO)
- Supports lamination, encoding, and dual‑sided printing
IDP SMART-70 ID Card Printer is built for organisations that demand high-volume, professional-grade card issuance. Thanks to its modular design, the SMART‑70 can be configured with single- or dual‑sided printing, a flipper module, lamination, and large output hoppers — making it highly flexible and future-proof.
With edge-to-edge dye-sublimation printing at 300 dpi, the IDP SMART-70 ID Card Printer delivers sharp, clear images. Its throughput is impressive: up to 1,000 monochrome cards per hour, and up to 225 full‑color cards per hour using YMCKO ribbon, or even more in optimized modes. This makes it ideal for large ID programs in corporate offices, government agencies, event management, or service bureaus.
The printer supports standard ISO CR80 card sizes and works with PVC, composite PVC, and PET cards. For added security and longevity, you can equip the system with lamination modules, which help protect cards from wear and tampering. There are also encoding options — magnetic stripe, contact smart cards, or contactless options — allowing the SMART‑70 to integrate with access control and smart card systems.
Ease of use is a key strength: the system supports automatic card feeding from a 500‑card input hopper, and cards can be stacked either via the standard 100‑card stacker or a 500‑card output hopper if needed. A 2‑line LCD panel with buttons keeps status and operations clear, and physical locking points like Kensington locks help secure the modules.
Connectivity is broad: USB, Ethernet, and host USB ports make it easy to manage in most IT environments. The SMART‑70 also offers low maintenance: its modular stations — printing, lamination, encoding — each have their own power supply and connect via alignment plates, making upgrades or repairs straightforward.
For large institutions looking for a scalable, high-throughput, secure, and modular ID card solution, the IDP SMART-70 ID Card Printer is a powerful and reliable choice.
For enquiries, expert help, or product guidance on IDP SMART-70 ID Card Printer, contact ID Vision:
Email: sales@idvisionme.com / Phone: +971 4 269 4620
| Feature | Details |
|---|---|
| Print Technology | Direct dye-sublimation |
| Resolution | 300 dpi color |
| Card Feeding | Automatic, 500-card input hopper |
| Card Size & Thickness | ISO CR80 (54 × 86 mm); 0.38 mm – 1.2 mm (15–47 mil) |
| Card Types | PVC, Composite PVC, PET |
| Print Speed | Monochrome: 3.6 sec/card (~1,000 cph); Full color: 16–18 sec/card (~200–225 cph) |
| Memory & Control | 64 MB RAM; 2-line LCD, 4 buttons, 1 LED |
| Connectivity | USB, 2 × USB host, Ethernet |
| Capacity & Hopper | 500-card input; 100-card stacker (optional 500‑card output hopper) |
| Power & Environment | AC 100–220V, 24V DC; 15–35°C operating, humidity 35–70% |
| Security & Encoding Options | Kensington lock; magnetic stripe; contact & contactless smart card options |
